Specifications and Parameters

Basic parameter

Dimension：about 333×247×230

Capacity：768Wh, 19.2V

Net weight：about 9.7kG

Output specification

AC output (2-way)：Total 800W (peak 1600W), pure sine wave, 220V/110V, 50Hz/60Hz.

USB-A (1-way) ：5V⎓2.4A, max. power 12W

USB-A fast charging (1-way) ：5V⎓2.4A, 9V⎓2A, 12V⎓1.5A, maximum power 18W

USB-C fast charging (2-way) ：5V/9V/12V/15V/20A⎓5A, max. power 100W

Car charger output ：12V⎓10A, max. power 120W

Input specification

AC input power：adapter 2A Max  22.2V⎓6A Max

AC input voltage：220V-240V-50Hz/60Hz

Solar charging input：11-30V⎓5A, max. power 110W

Battery specification

Battery cell material：lithium iron phosphate

Cycle life：After 4000 cycles, the remaining capacity is still more than 80%

Protection type ：High temperature protection, low temperature protection, over-discharge protection, over-charge protection, overload protection, short circuit protection, and over-current protection

Operating temperature

The optimum ambient temperature：20℃ to 30℃

Charging temperature：0℃ to 45℃

Discharge temperature：-10℃ to 45℃

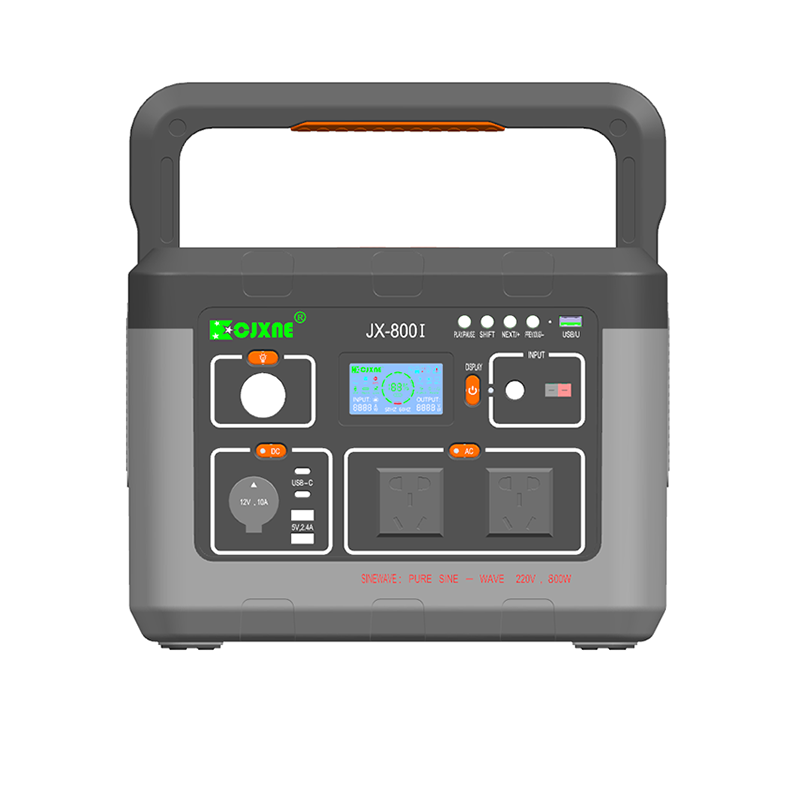

Product Appearance

LCD screen

Outdoor power supply 800Pro-1000Pro-1200Pro
